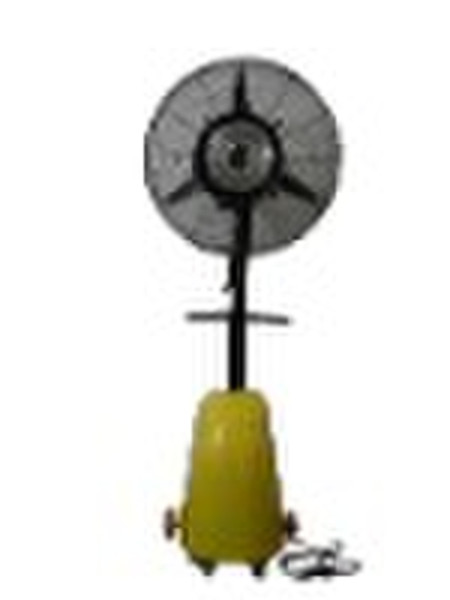

Mist Fan/Stainless Steel (AM-650GH)

Mist Fan (AM-650GH) Mist Fan design principle The mist fan was designed with the advanced principle of double atomization. The water drips are jetted under the diffusion of the rotating plate and atomized equipment; reduce the diameter of the atomized water drip to 10 um under the centrifugal force. Hence improve the atomization surface area. The atomized water drips are jetted out with gas flow and it improves the surface speed of liquid greatly, speedup the diffusion of the gas molecule, therefore increase the quantity of the evaporation. Also the evaporation absorbs the heat and decreases the temperature, improves the relative humidity and reduces the dust.Mist Fan Main parts (1) Fan motor (2) Impeller (3) Fan guards (4) Jet plate (5) Water tank (6) Pump (7) Standing pole (Ground) (8) Push pedestal (Ground) (9) Switch box (Wall) (10) HandcartMist Fan Parameter (1) Dimension: 650 mm (26inches) (2) Voltage: 220 240V (3) Fan height: adjustable from 1700mm to 2000mm (4) Fan oscillation adjustable: 90 degrees automatically (5) Fan tilt adjustable: 30 degrees (6) Available area: 50 square meters (7) Temperatures drop: 4- 8 (8) Operation Temperature: 20 - 80 (9) Operation Humidity: 20% - 85% (10) Quantity of atomization: 0 - 8L/h (11) Diameter of atomized drip: 10 um (12) Capacity (Ground): 36 L (13) Jet distance: 8 mMist Fan Characteristics (1) Thin atomized water drips, long range of spraying, no water dropping. (2) No special demand of the quality of the water and water pressure. (3) Single used, fine enginery, more agile, wide range of using. (4) Easy to install, convenient to move. (5) 90 degrees oscillation, three speed control, blowing without atomization. (6) Waterproof electric design, safe use (7) Adjustable misting volume, low noiseMist Fan Application Themist fan was widely used in the public situation without air-condition such as store, wine floor, plant, mill, medicine shop, hothouse canopy, fowl house, fungus planting, tea processing where need ventilation, reducing heat and improving humidity.Mist Fan Advantage (1) Compared with the foreign product, we adopt the high quality material---rustproof steel, overcome the problem of dirty forming and cleaning. (2) Compared with the atomized system with nozzle and plenum pump, our fan can't be blocked and without high pressure. (3) No need to maintenance, saving power and water, with lower cost, compared with the system with central air-condition and jet house. (4) Overcome the disadvantage of large air resistance and slow reduction of temperature compared with the system of wet shade. We can also supply: (1) Mist fan AM-650GB; (2) Mist fan AM-650GT; (3) Mist fan AM-650W; (4) Mist fan AM-650C; (5) Mist Fan AM-702F20; (6) AM-Isup Series
